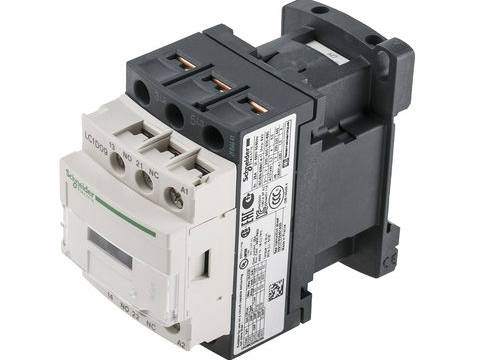

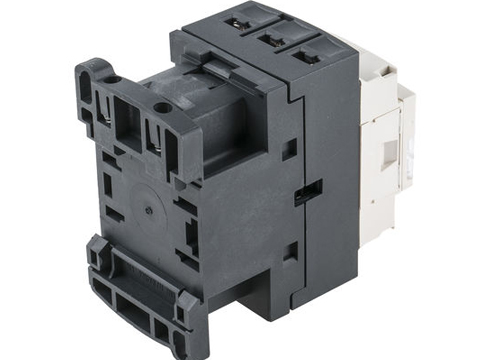

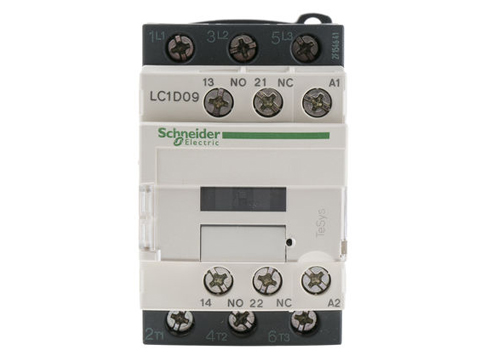

TeSys LC1 3 Pole Contactor, 9 A, 4 kW, 220 V ac Coil
3 pole Contactors, AC Controlled, under 18kW power rating
Utilisation category AC3
415Vac switching voltage
Mfr. Part No. LC1D09M7
- Product Details
- Specifications
- Customer Reviews
3 pole Contactors, AC Controlled, under 18kW power rating
Utilisation category AC3
415Vac switching voltage
3 pole NO
| Switching Power | Current Rating | Height (mm) | Width (mm) | Depth (mm) |
| 4 kW | 9 A | 77 | 45 | 86 |
| 5.5 kW | 12 A | 77 | 45 | 86 |
| 9 kW | 18 A | 77 | 45 | 86 |
| 11 kW | 25 A | 85 | 45 | 92 |
| 15 kW | 32 A | 85 | 45 | 92 |
| 18.5 kW | 38 A | 85 | 45 | 92 |
| 22 kW | 40 A | 127 | 75 | 119 |
| 25 kW | 50 A | 127 | 75 | 119 |
| 37 kW | 65 A | 127 | 75 | 119 |
| 45 kW | 80 A | 127 | 85 | 130 |
| 59 kW | 115 A | 158 | 120 | 136 |
| 80 kW | 150 A | 158 | 120 | 136 |
| Part numbers ending in "L" | Low-consumption coils |
| LC1Dxx3xx | Connection via spring terminal or screw terminal. |
Approvals
UL and CSA
